Machine Features:
1.Equipped with gas tank to ensure the machine stability during running;
2.Can height can be adjusted automatically by PLC;
3.It can lubricate automatically and regularly;
4.Brand of electrical element is Schneider;

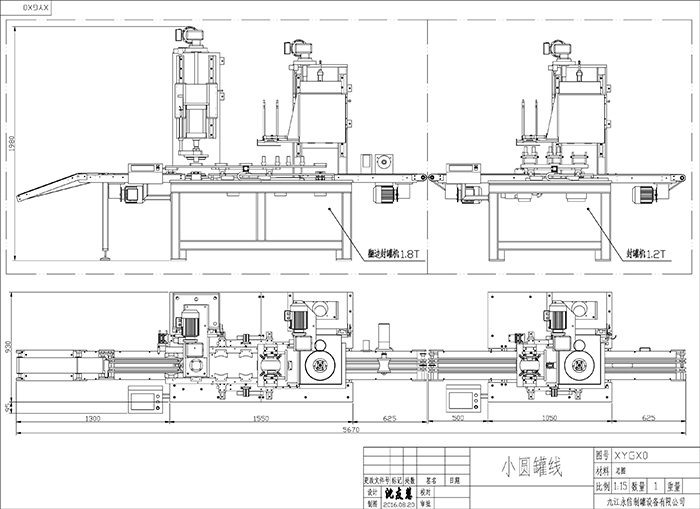

| Line Including | V-type Standing Can Input Conveyor-Double Side Flanging-Bottom Seaming-Uptending-Top Seaming |
| Operation Mode | Fully Automation |
| Output Capacity | 35-40CPM |
| Diameter Range | 52-190 （mm）(0.5-5L Round) |
| Height Range | 60-330 （mm）Height can be adjustable |
| Lid Feed-in Mode | Dual-Knife Style Automatic Feed-in (Auto Detection) |
| No. of Seaming Roller | 4-Seaming Roller |
| Seaming Mode | High Precision Double Seaming |
| Auto Lubrication Sys. | Built-in |
| PLC Device | Built-in |
| Touch Panel Control System | Built-in 7''Color Display (English Language Interface) |
| Auto Feed-Can-in Detection | Built-in |
| Air Presure Required | No less 0.6MPa |
| Motor Power | 4KW |
| Power Supply | Three phase four wire 380V |
| Construction Size | 5700 x 930 x 1990 （mm）Tailor-made Provided |
| Machine Weight | 2800kg |
 | |
